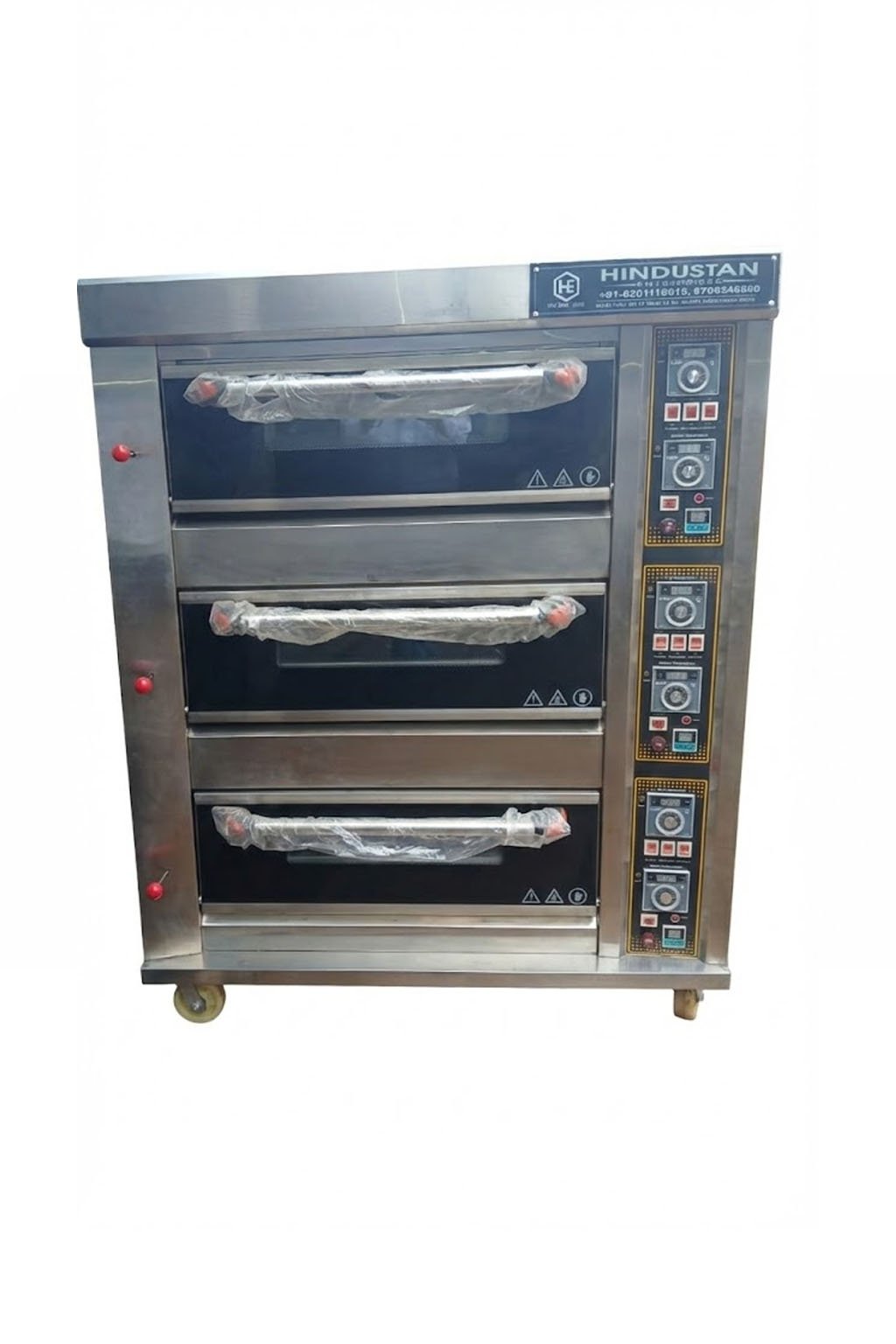

| Triple Deck Gas Oven (Imported) – 6 Tray Specification | |
|---|---|
| Machine Type | |
| Oven Type | Imported Triple Deck Gas Oven |
| Deck / Chamber | 3 Deck / 3 Chamber |
| Total Tray Capacity | 06 Tray (2 Tray per Deck) |
| Usage | Cake / Bread / Biscuit / Pizza / Cookies / Puffs / Rusk |
| Tray Capacity & Size | |
| Total Trays | 06 Trays |
| Deck Arrangement | 02 Tray Top Deck + 02 Tray Middle Deck + 02 Tray Bottom Deck |
| Tray Size (Standard) | 16 × 24 Inch |
| Tray Size Option | 18 × 26 Inch (Optional) |
| Heating System | |
| Heating Type | Gas Heating (LPG) |
| Heat Distribution | Top + Bottom Heating (Each Deck) |
| Deck Temperature Control | Separate Temperature Control for Each Deck |
| Burner Control | Upper / Lower Burner Control (Model Wise) |
| Temperature Control | |
| Temperature Range | 0°C – 300°C |
| Temperature Control | Thermostat Control (Deck Wise) |
| Temperature Indicator | Available (Model Wise) |
| Chamber / Body | |
| Outer Body | MS Powder Coated / SS |
| Inner Chamber | Stainless Steel (SS) |
| Insulation | Rockwool / Glasswool |
| Door | Heat Proof Door with Strong Gasket |
| Burner | |
| Burner Type | Heavy Duty Imported Burner |
| Gas Consumption | Approx. 1.5 – 3.0 Kg/Hour (Model Wise) |
| Power Requirement | |
| Power Supply | 220V Single Phase |
| Electric Usage | Ignition + Light + Fan Only |
| Control Panel | |
| Control Type | Manual / Digital Panel (Imported Model Wise) |
| Timer | Optional (Available in Some Models) |
| Deck Control | Separate Deck Control |
| Size / Weight (Approx.) | |
| Dimension | Approx. 30 × 30 × 75 Inch (Model Wise) |
| Weight | Approx. 200 – 350 Kg |
